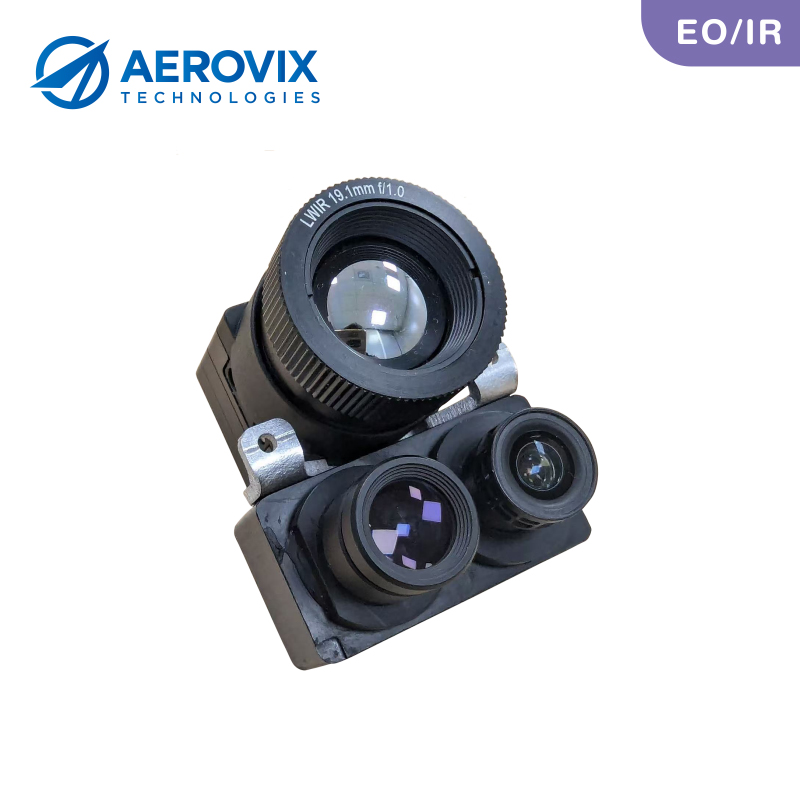

| EO Camera |  | |
| Sensor | 20M (5120x3840) | |
| Optical Lens | Wide 5mm | HFOV 80° ±5° |
| Tele 25mm | HFOV 16° ±1° | |
| Waterproof | IP67 | |
| Zoom | 16:9 (1920x1080) | 13.3 Optical Zoom + 2x Digital Zoom |
| 4:3 (1440x1080) | 17.8 Optical Zoom + 2x Digital Zoom |
|
| Video Control | Auto-gain, Target AE | |
| Video Output Interface | High-definition output /USB | |
| Command Interface | UART | |
| Outputs Connecter | Coaxial Cable Integrated (40pin) | |
| LWIR Camera Interface | USB Pass Through | |
| IMU | STLSM6DSO (STMicroelectronics) | |
| LIS2MDL (STMicroelectronics) | ||
| IMU Interface | SPI (TBD) | |
| Weight | 26g | |
| Power Consumption | 1.6W, 320mA | |
| Integrated Device | LWIR camera | |
| Image Output | 640 x 512 | |
| Place of Production | Image sensor: USA | |
| ISP: TAIWAN | ||
| PCBA: TAIWAN | ||
| ASSEMBLY/TEST: TAIWAN |
| IR Camera |  |
| Module Type | LWIR |
| Detector Type | VOx |
| Resolution | 640 x 512 |
| Pixel Pitch | 12μm |
| Spectral Bandwidth (μm) | 8-14μm |
| NETD (mk) | ≤40mk (@F/1.0, 300K) |
| Frame Rate | Typ. 30Hz |
| Operating Temperature | -20°C – 70°C |
| Storage Temperature | -40°C – 70°C |
| Humidity | ≤90% |
| Optimum Radiometric Range | -20°C – 150°C |
| Radiometry Temperature Accuracy | ±2°C (@Ambient: -20°C – 60°C ±2%) |
| Non-uniformity Calibration | Dynamic Correction with Shutter 0.64s |
| Noise Reduction | 3D noise reduction |
| Image Output | 640 x 512 |
| Color Palette | Black hot, white hot, iron red, rianbow |
| Contrast / Brightness | Manual |
| Video Format | MJGP/YUYV |
| Working Voltage Range | DC 5.0V |
| Power Consumption | 0.7W |
| Output | USB 2.0 |
| Communication Methods | UART |
| Dimension | 21 x 21 x 25mm (core without lens) |
| Weight | <34g (core without lens) |
| Lens | 9mm (standard) FOV 48.8° x 38.8° |
