| Detector Type | Vox |
| Resolution | 640 x 512 |
| Pixel Pitch | 12μm |
| Spectral Bandwidth (μm) | 8-14μm |
| NETD (mk) | ≤40mk (@F/1.0, 300K) |
| Frame Rate | Typ. 30Hz |
| Operating Temperature | -20°C – 70°C |
| Storage Temperature | -40°C – 70°C |
| Humidity | ≤90% |
| Optimum Radiometric Range | -20°C – 150°C |
| Radiometry Temperature Accuracy | ±2°C (@Ambient: -20°C – 60°C ±2%) |
| Non-uniformity Calibration | Dynamic Correction with Shutter 0.64s |
| Noise Reduction | 3D noise reduction |
| Image Output | 640 x 512 |
| Color Palette | Black hot, white hot, iron red, rianbow |
| Contrast / Brightness | Manual |
| Video Format | MJGP/YUYV |
| Working Voltage Range | DC 5.0V |
| Power Consumption | <0.9W (Stable Condition) |
| Output | USB 2.0 |
| Communication Methods | UART |

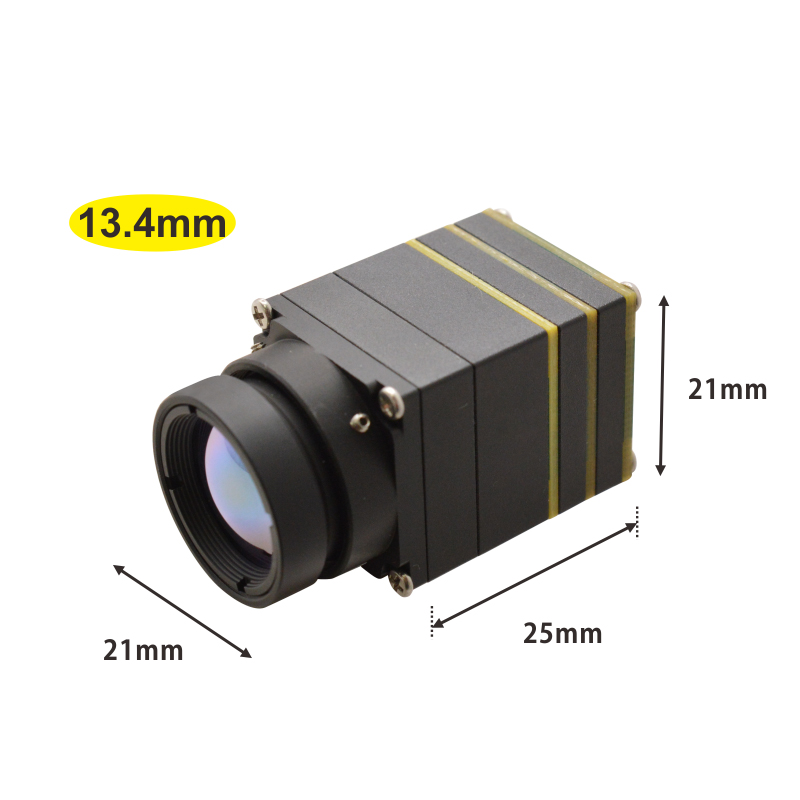

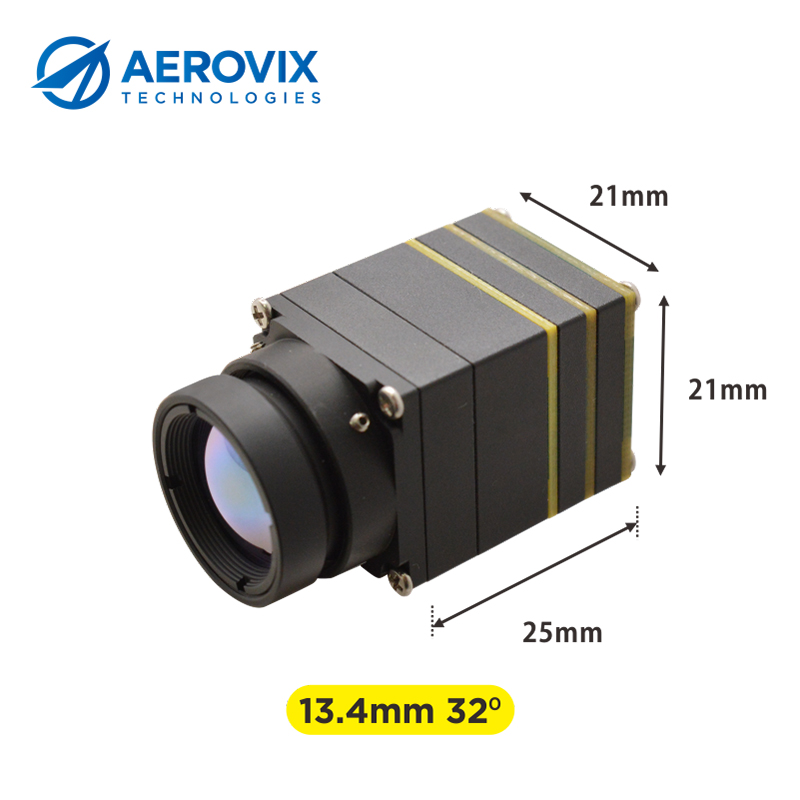

| Dimension | 21 x 21 x 25mm (core without lens) |
| Weight | <34g (core without lens) |
| Lens | 13.4mm FOV 31.98° x 25.82° |
