Detector Type Vox
Resolution 640 x 512
Pixel Pitch 12μm
Spectral Bandwidth (μm) 8-14μm
NETD (mk) ≤50mk (@F/1.0, 300K)
Frame Rate PAL: 25Hz (progressive) 50Hz (interlaced)
NTSC : 30Hz (Progressive) 60Hz (interlaced)
Operating Temperature -20°C – 70°C
Storage Temperature -40°C – 70°C
Humidity ≤90%
Optimum Radiometric Range -20°C – 150°C
Radiometry Temperature Accuracy ±2°C (@Ambient: -20°C – 60°C ±2%)
Non-uniformity Calibration Dynamic Correction with Shutter 0.64s
Noise Reduction 3D noise reduction
Image Output 640 x 512
Color Palette Black hot, white hot, iron red, rianbow
Contrast / Brightness Manual
Video Format YUYV
Working Voltage Range DC 5.0V
Power Consumption ≤0.9W (Stable Condition)
Output CVBS (NTSC or PAL)
Communication Methods TTL

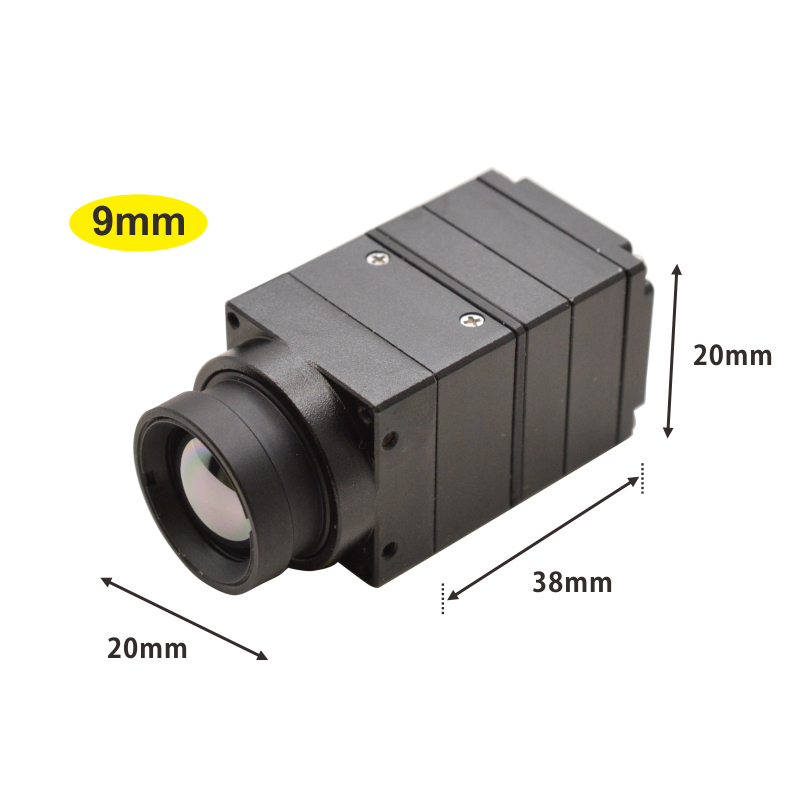

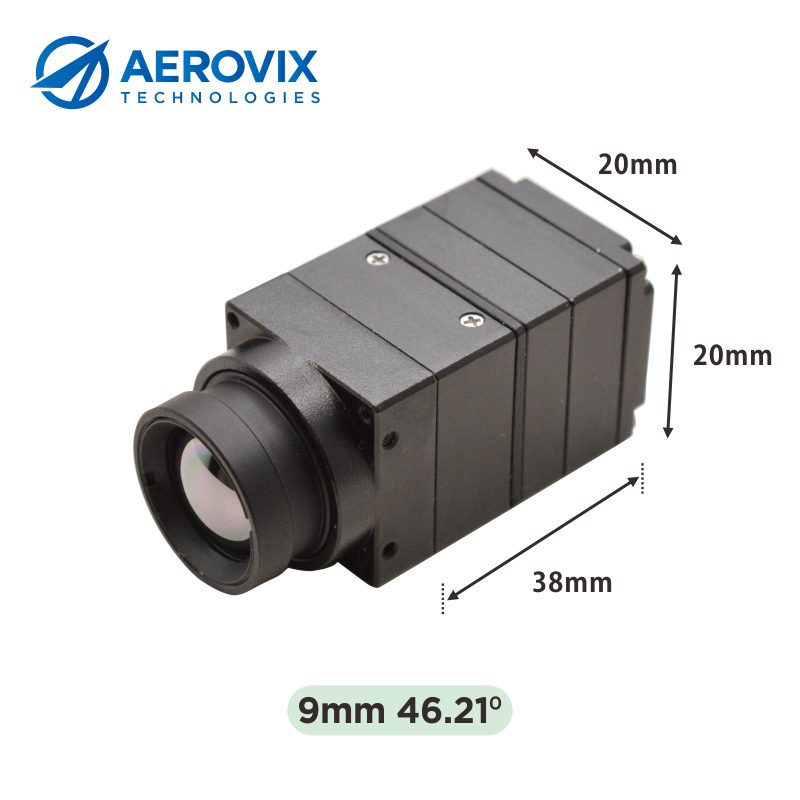

Dimension 20 x 20 x 38mm (core without lens)
Weight <34g (core without lens)
Lens 9mm (standard)
FOV 46.21° x 37.69°
