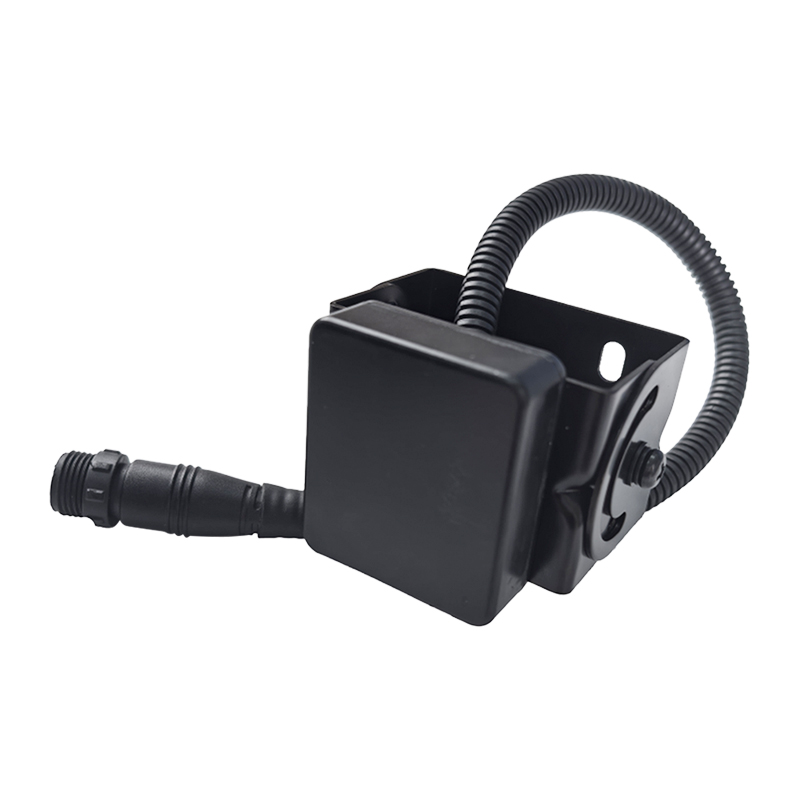

| Radar Sensor |  | ||
|---|---|---|---|
| Rated working voltage | 12V/24V | Horizontal angle | 120°(-3db) |
| Operating voltage range | 9-32V | Vertical angle | 30°(-3db) |
| Working current | 200mA | Angle accuracy | ±2 @ ±45° |
| Operating temperature range | -40℃ ~ +80℃ | Angular resolution | 15° |
| Storage temperature range | -40℃ ~ +85℃ | Speed Range | -200 ~ +200km/h |
| Working frequency | 76-77GHz | Speed Accuracy | 0.2m/s |
| Transmit power | 12dBm | Detectability | 50m |
| Modulation mode | FMCW | Distance Accuracy | 0.2m |
| Antenna form | 2TX，4RX | Distance Resolution | 0.2m |
| Traceable target number | 64 | Waterproof grade | IP67 |
